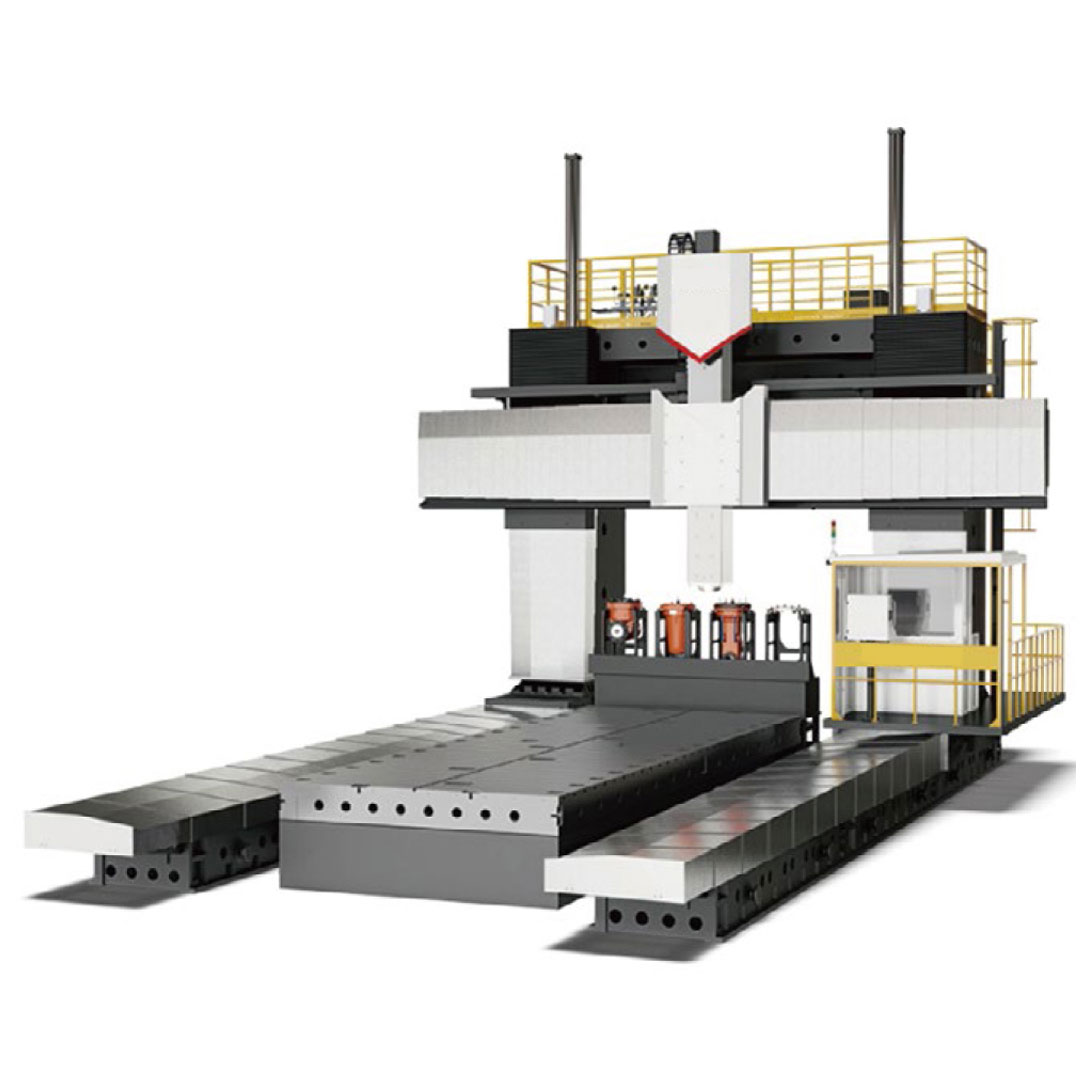

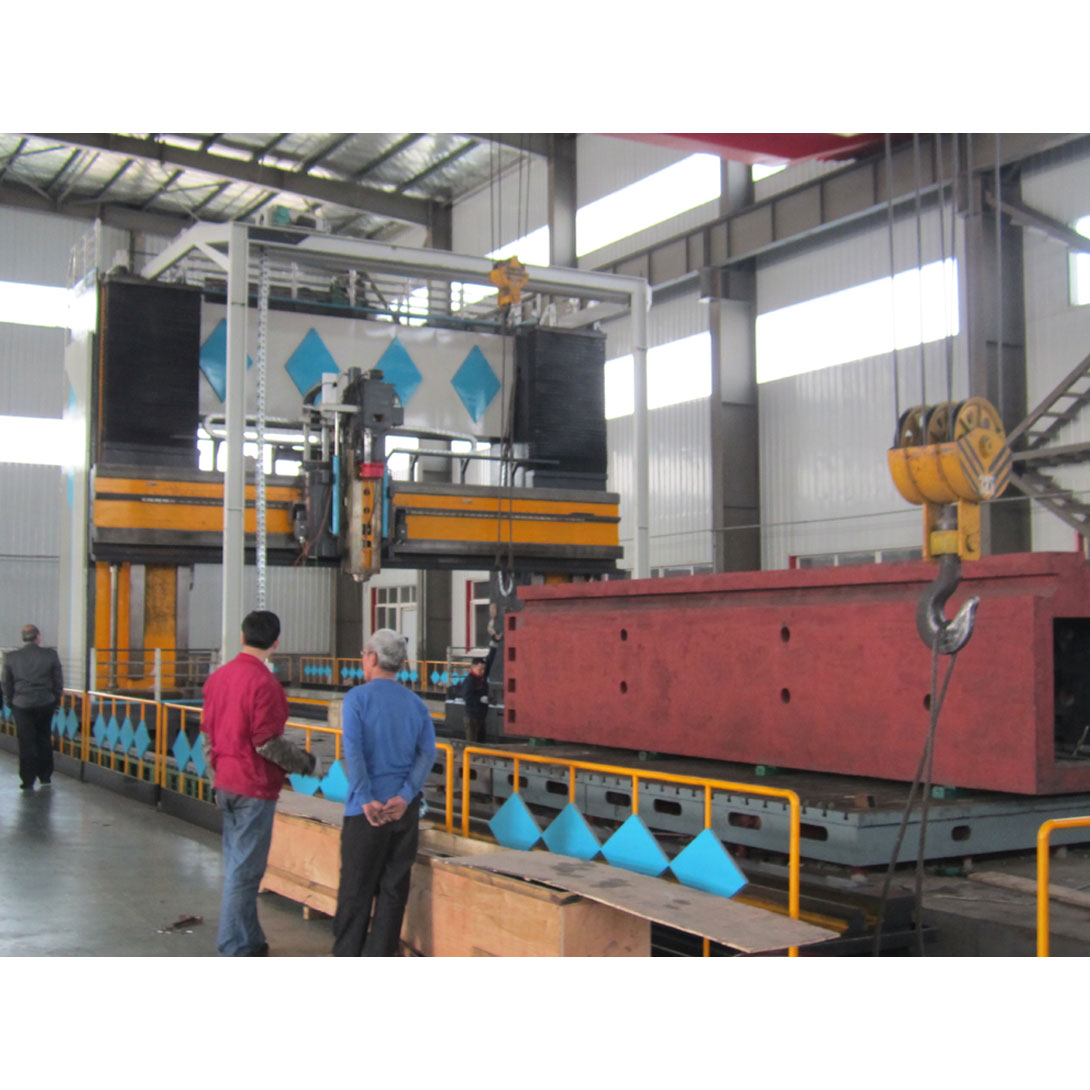

5 axis gantry mills -4

Description

MCG series gantry machining center is mainly used for medium and large automobile cold stamping molds, as well as aerospace industry, equipment manufacturing precision and complex parts of multi-variety, small and medium batch processing. It can meet the usual milling, drilling, tapping, boring, inner hole, outer circle, plane, step, cone, sphere, groove, and 2D or 3D complex surface of various high-temperature alloys, titanium alloys, heat-resistant alloys, stainless steel, cast iron, cast steel and other materials for rough and fine processing of forgings and blanks. The equipment can be equipped with a heavy-duty five-axis milling head, which can realize five-axis five-linkage, and can process various complex surfaces such as spheres and ellipsoids.

The equipment adopts single-spindle, column move, table fixed. beam lifting structure

Description

1: Beam: Strengthened structure. HT300

2: Spindle motor: original Siemens AC motor

3: Linear guide: #65

4: 5-axis head: MEPRO

5: Y1, Y2 axis ball screw: 80mm

6: Bearing: German FAG

7: Coupling NBK Japan

8: Reducer: German ALPHA

Product introduction:

The structural characteristics of the machine tool: the fixed bed and the column move; the headstock moves with the slide plate; the three-axis linkage can also be realized by moving the beam to the left and right; the 22KW main boring and milling head is arranged. The main milling head of the machine tool has the functions of milling, boring, drilling and boring. It is suitable for the processing of large and medium-sized parts in machinery, steel, energy, automobile, aerospace, weapons, shipbuilding and other industries.

Item		Unit	XKH2830
Worktable	Table size	mm	3000×6000
	T-slot	mm	11-28-220
	Max. loading capacity	kg	15000/m2
Working range	X axis travel	mm	6000
	Y axis travel	mm	4200
	Z axis travel	mm	1250
	W axis travel (Beam)	mm	2000
	Spindle nose to table surface	mm	350-1150
	Distance between columns	mm	3600
Spindle	Spindle speed	r/min	2-2000
	Spindle taper		BT50
	Spindle power	KW	37
Feedrate	X/Y axis rapid feed speed	m/min	5-6000
	Z axis rapid feed speed	m/min	5-4000
	Cutting speed	mm/min	10-8000
Precision	X/Y/Z positioning accuracy	mm	0.025
	X/Y/Z re-positioning accuracy	mm	0.015
ATC (optional)	Number	station	24
	Max. tool dia,/length	mm	Ф190
	Max. tool weight	kg	15
Others	Machine net weight	kg	28000
	Floor space	mm	6500×4600



No	Item	Manufacture
1	System	SIEMENS 840DSL 5 Axis path (Germany original)
2	High-strength bed workbench	MASIN
3	Reducing	ALPHA (Germany original)
4	C3 Ball screw	HIWIN ( TAIWAN original)
5	P- lever leaner	HIWIN ( TAIWAN original)
6	Spindle	VYU CHENG ( TAIWAN original)
7	Gear rack	YYC( TAIWAN original)
8	Spindle bearing	FAG (Germany original)
9	Main components of pneumatic system	Airtec( TAIWAN original)
10	Main components of lubrication system	SKF （Swden original）
11	Main electrical components	Schneider (French original)
12	Spindle oil temperature cooler	China
13	Couping	NBK(Japan original)
14	Protection cover	China
15	Steel protective pull cover	China
16	Square ram gear box	Length: 3100mm              TAIWAN
17	Chain chip conveyor(2 pcs)	Length:10000mm for each side  CHINA
18	Bolt of ball screw	YYC( TAIWAN original)
19	Knife cylinder	VYU CHENG ( TAIWAN original)
20	Nitrogen balance system	XINYUNG ( TAIWAN original)
21	5 Axis head	Mepro
22	Linear DRO	Fagor (spain original)
23

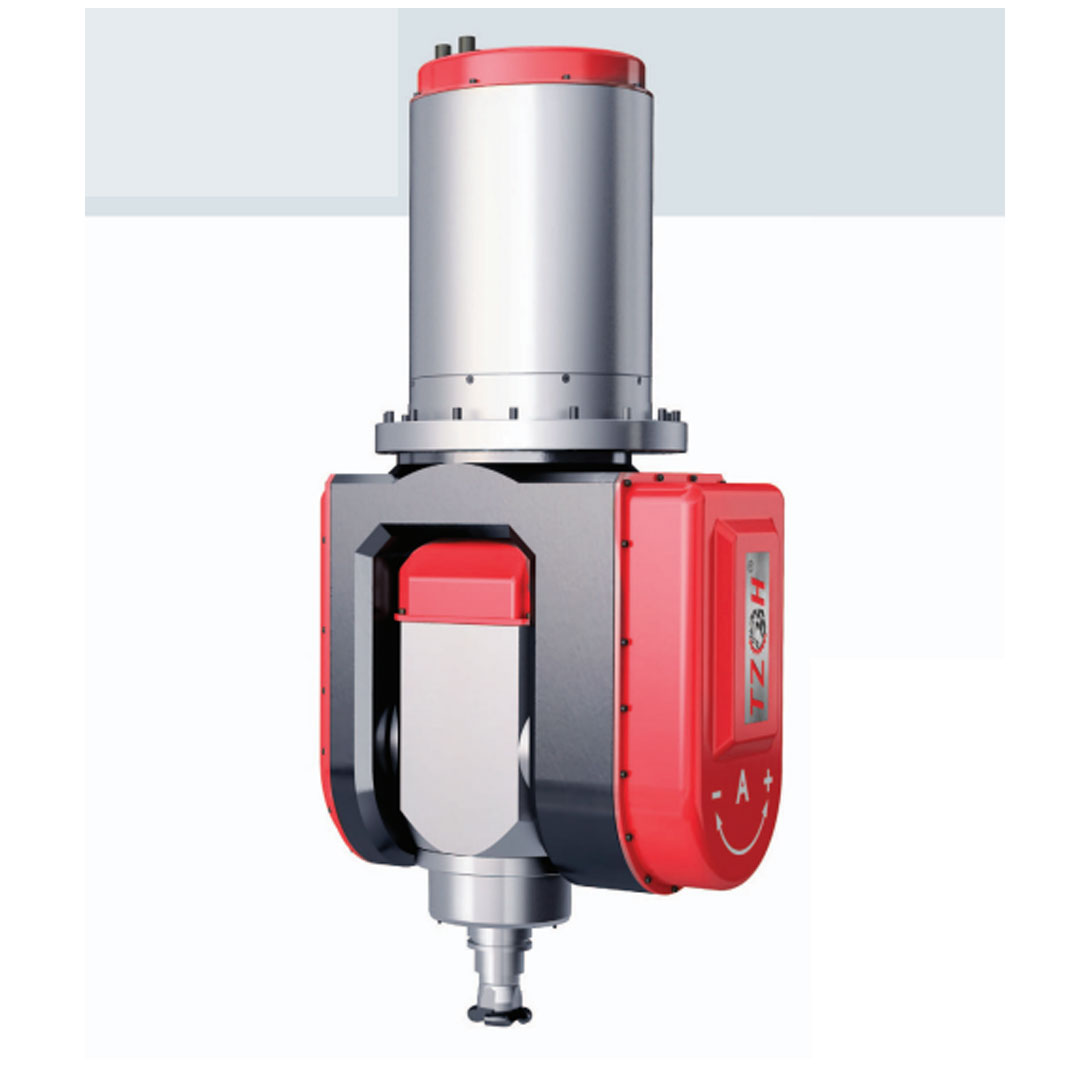

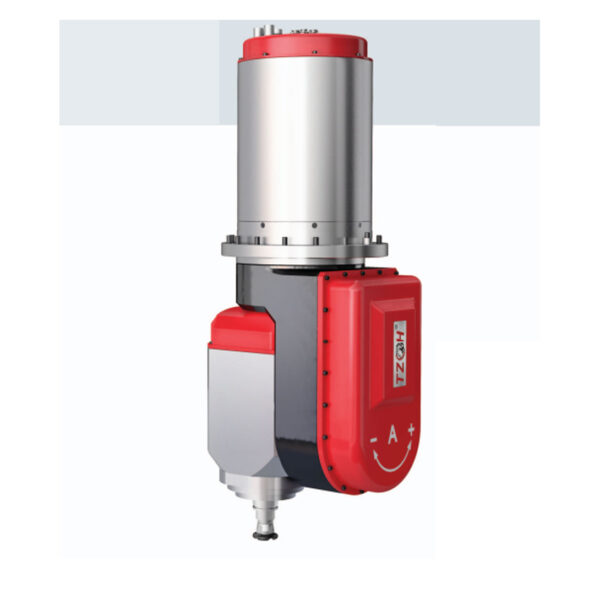

5 axis milling attachment option:
