CK52100

Description

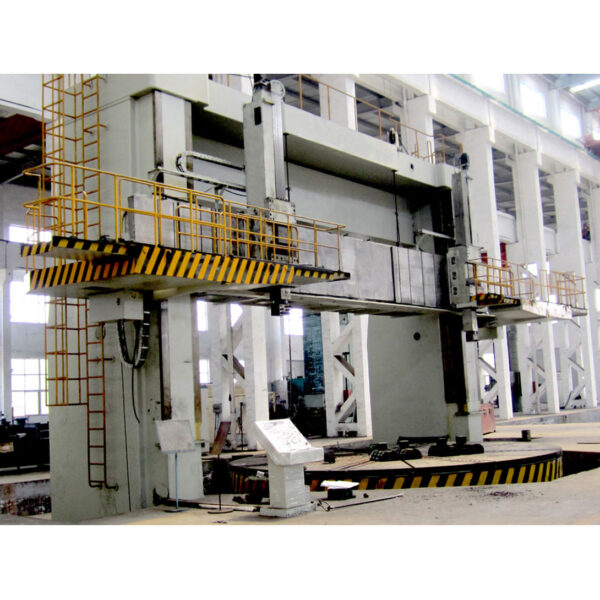

The CNC Double Column Vertical Lathe model CK52100 is a combination of modern advanced mechanics,
electrics and hydraulics basing on extensive experience, special focus and professional skills in the design
and manufacturing of large scale vertical lathes. It is designed and manufactured with latest technology
know-how, optimized design, quality material, fitting and best process for manufacturing and assembly.
It features,
★ High rigid thermo-symmetrical gantry structure for superb stability even at severe cutting conditions
★ Heavily ribbed base and table with hydrostatic axial bearing for big load capability
★ Modular design easily to be customized to suit customer’s diverse machining needs, ie. turning, milling,
drilling, threading and grinding.
It is designed and manufactured to meet modern machining requirements with high speed cutting tools and
carbide cutters on workpieces of cast iron, cast steel, alloy steel, fabricated steel and other materials.

Main features

★ Suitable for 380v/50HZ/3PH, or local power supply,
★ Reliable & powerful Siemens SINUMERIK 828D s.l. CNC control, or FANUC OI
★ High grade cast iron structure of main bodies for super stability, reliability & longer machine life,

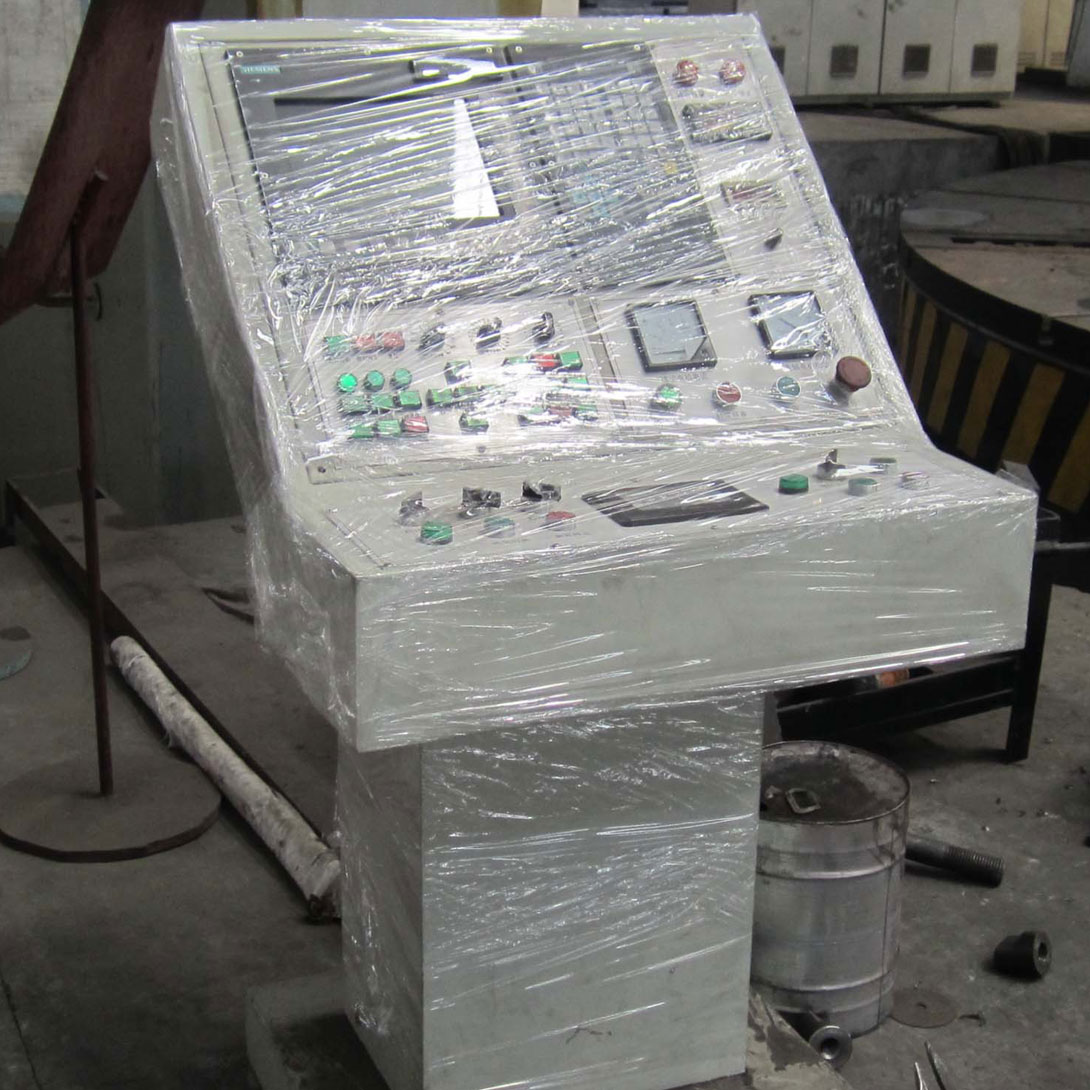

★ Centralized operation button station and pendent operation panel,
★ Table with manual 4-jaw chuck with chucking jaws,

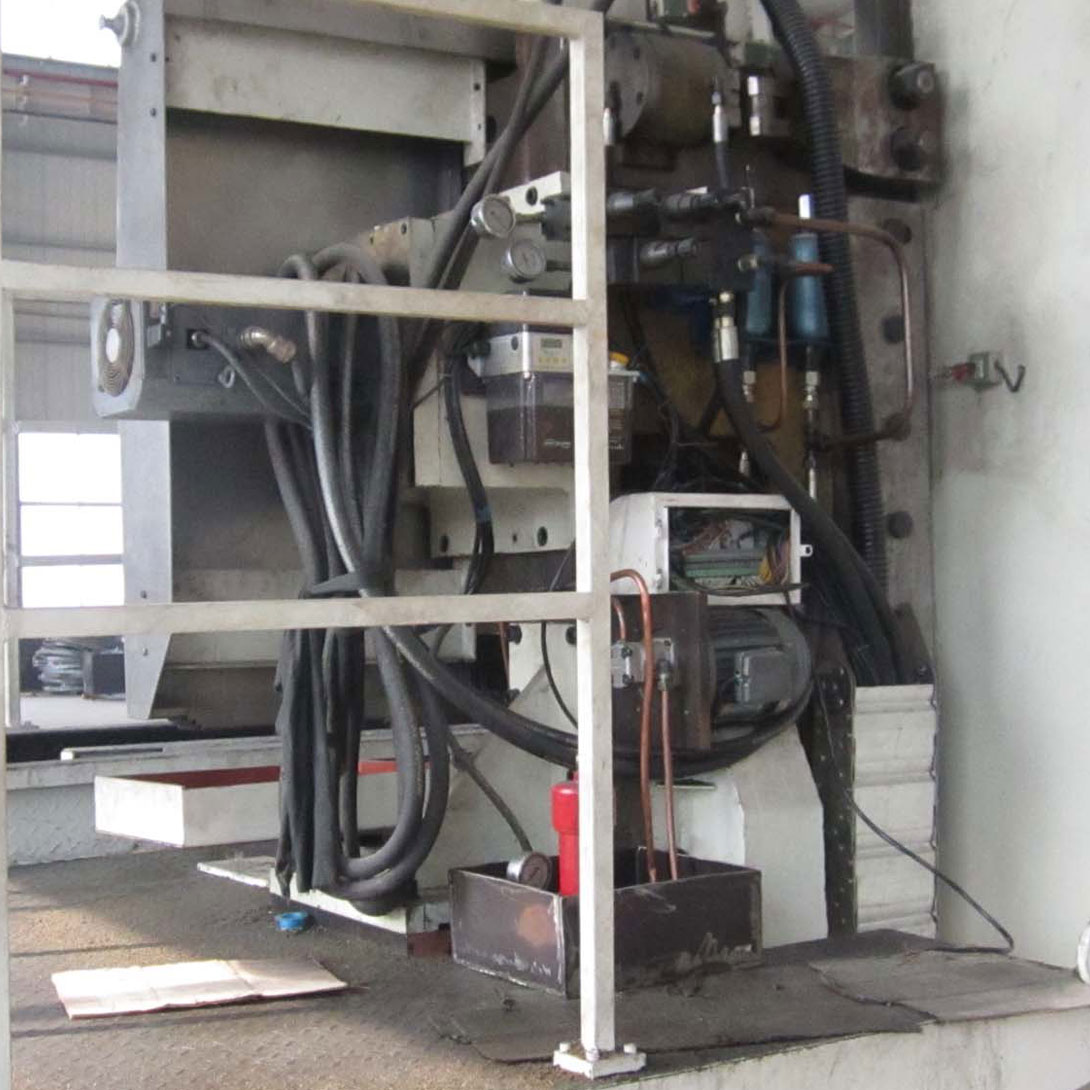

★ CNC controlled left tool head and buttons & switches controlled right tool head,
★ Square toolpost on vertical heads, especially suitable for deep hole machining,
★ Forged shafts used in the table speed change gear box,
★ 2 spindle speed gears, within each gear variable speeds are achievable for the table,
★ Hardened & ground gears in table speed change gearbox for smooth running,
★ High precision bearings used for supporting precision ballscrews (X / Z axes) on tool heads,
★ Automatic compulsory lubrication system for tool heads and cross rail guideways,

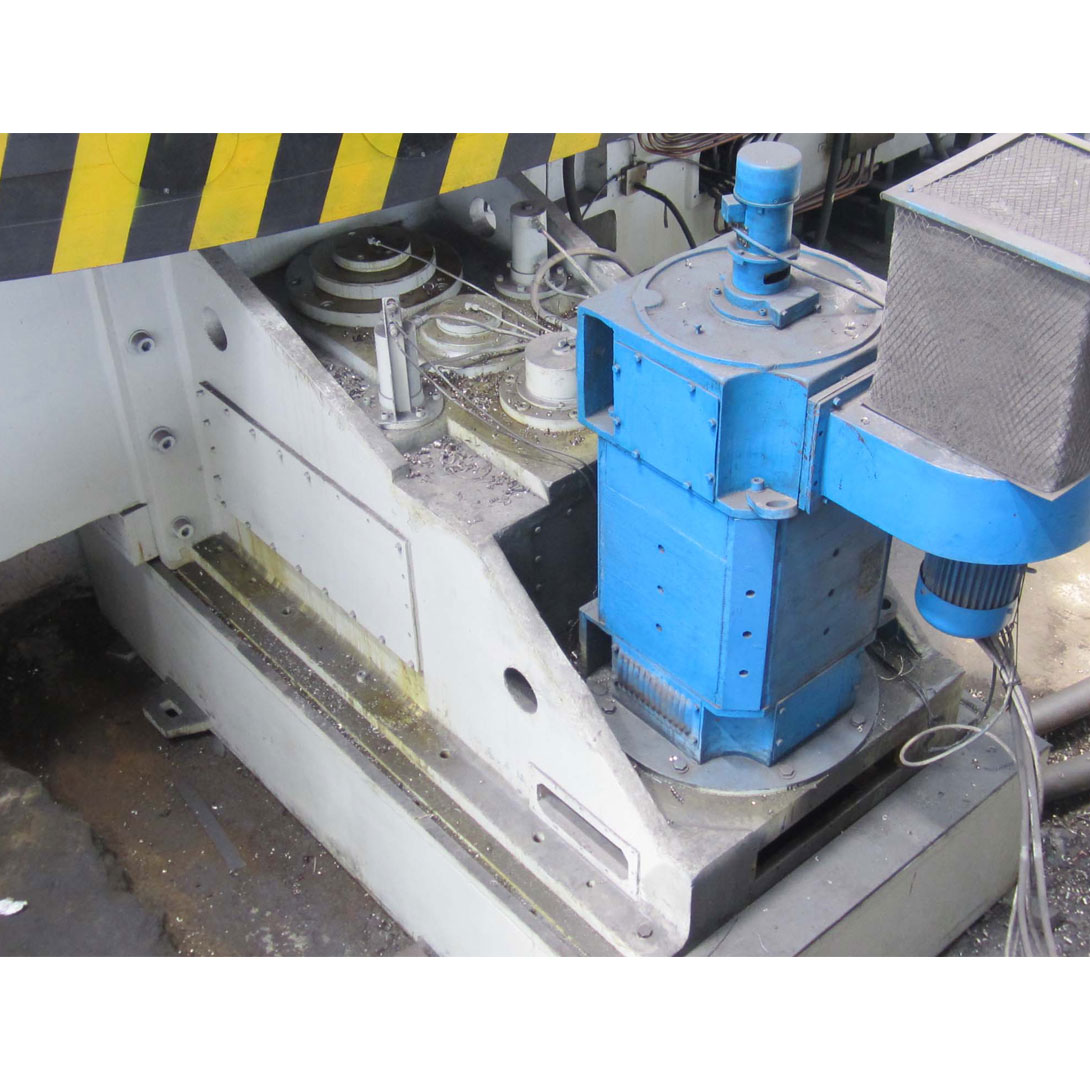

★ High power DC 110 kW main motor with DC digital drive unit (Eurotherm / PARKER brand),
★ Air conditioner for independent electric cabinet, especially suitable for tropic climate,
★ Work lamps for sufficient lighting,
★ Independent hydraulic power pack, easier for adjustment & maintenance,
★ Hydrostatic axial bearing table with constant flow power supply (0.2-0.4Mpa),
★ 12 pockets big axial hydrostatic bearing area ensuring big table load capacity,
★ Automatic clamping of cross rail onto the columns for heavy duty cutting,
★ C45 steel rams are induction hardened & ground for improved dynamic performance & longer life,
★ Anti-wear industrial Zinc-Aluminum alloy (ZnAl10-5) lining on sliding guideways and wear-resistant
Zinc-Aluminum alloy (ZnAl10-5) lining engraved on table guideways for longer machine life,
★ PLC unit (DELTA / OMRON brand) integrated in electrical system for reliable functioning,
★ Servo feeding motors & ballscrews are used for feeding of both tool heads,

Max. turning diameter (mm)	10000
Table diameter(mm)	7100
Max. working height of work-piece(mm)	500
Max. cutting resistance of right tool post（CNC）(KN)	100
Max. cutting resistance of left tool post （PLC）(KN)	80
Max. torque of table(KN·m)	500
Speed range of table(r/min)	0.155～162r/min, 2 gears, stepless
Rapid traveling speed of tool post(mm/min)	2000
Table guide	Static Hydrostatic
Moving degrees limit of tool post(°)	-15~+30
Controller	FANUC OL MD
Position accuracy	Test and evaluate accuracy according to GB/T17421.2-2000
Positional accuracy(mm)	X  Z     0.03/1000
Repeatable positional accuracy(mm)	X  Z     0.015/1000
Reverse positional accuracy(mm)	X  Z     0.010/1000
Max work pieces load (T)	200
Temperature range(°)	0~40°
Ambient humidity	≤85%
Power supply and voltage	380V±10% or specified
Travel of tool post Horizontal(mm)	-50-5150mm
Travel of tool post (Vertical)(mm)	2500
Number of feeds	Stepless
Feed range of table(mm/min)	0.1~500
Travel of crossbeam(mm)	4500
Moving speed of the crossbeam(mm/min)	300
Machine weight	240
Power of main motor(KW)	110

★ Telescopic steel covers on cross rail guideways to avoid intrusion of chips, dust, oil,

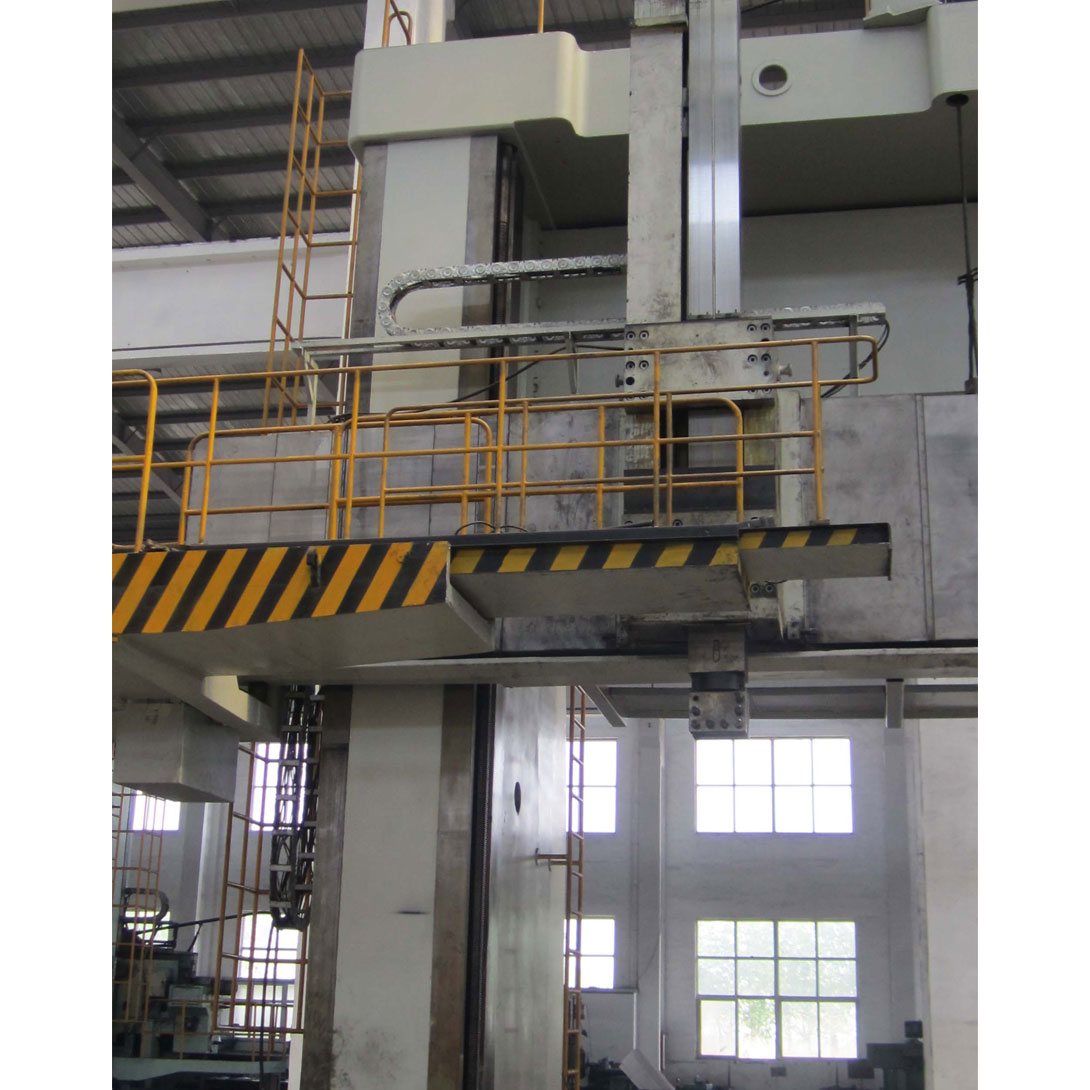

★ Telescopically moveable operation platforms provided at both sides of the cross rail for easier\

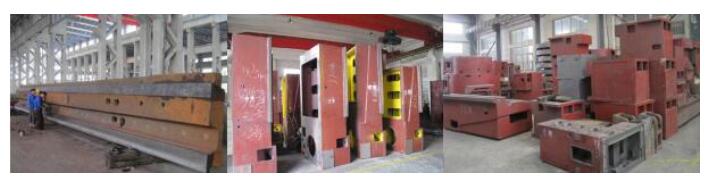

Castings:

Main bodies of the machine are made of high rigid resin sand castings with thermal / vibratory stress relief
(VSR) aging treatment. Steel parts are thermal refined.
○ resin sand casting,
○ high grade, high intensity and low stress
○ stress relieved castings to absorb the stresses and dampen the vibration during cutting

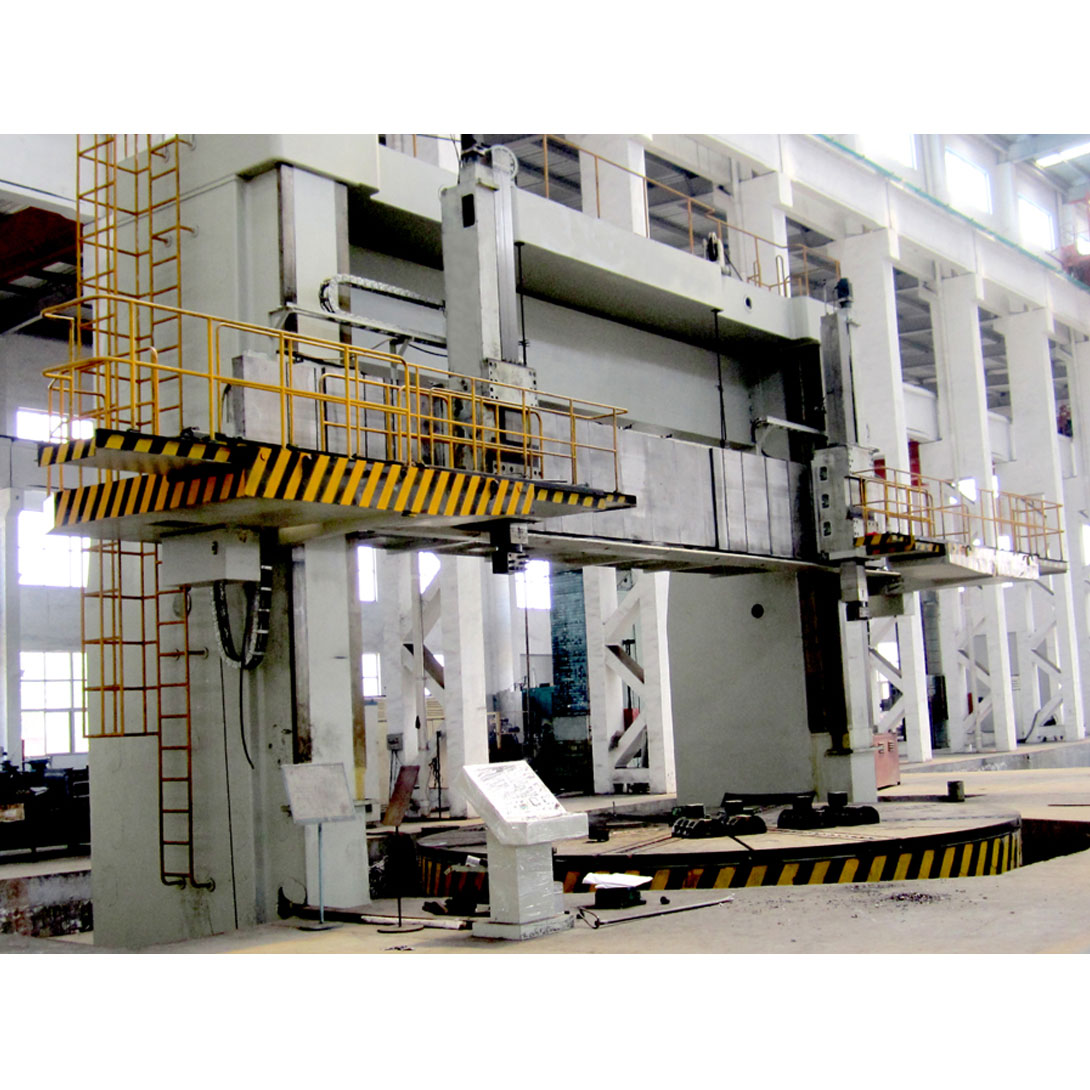

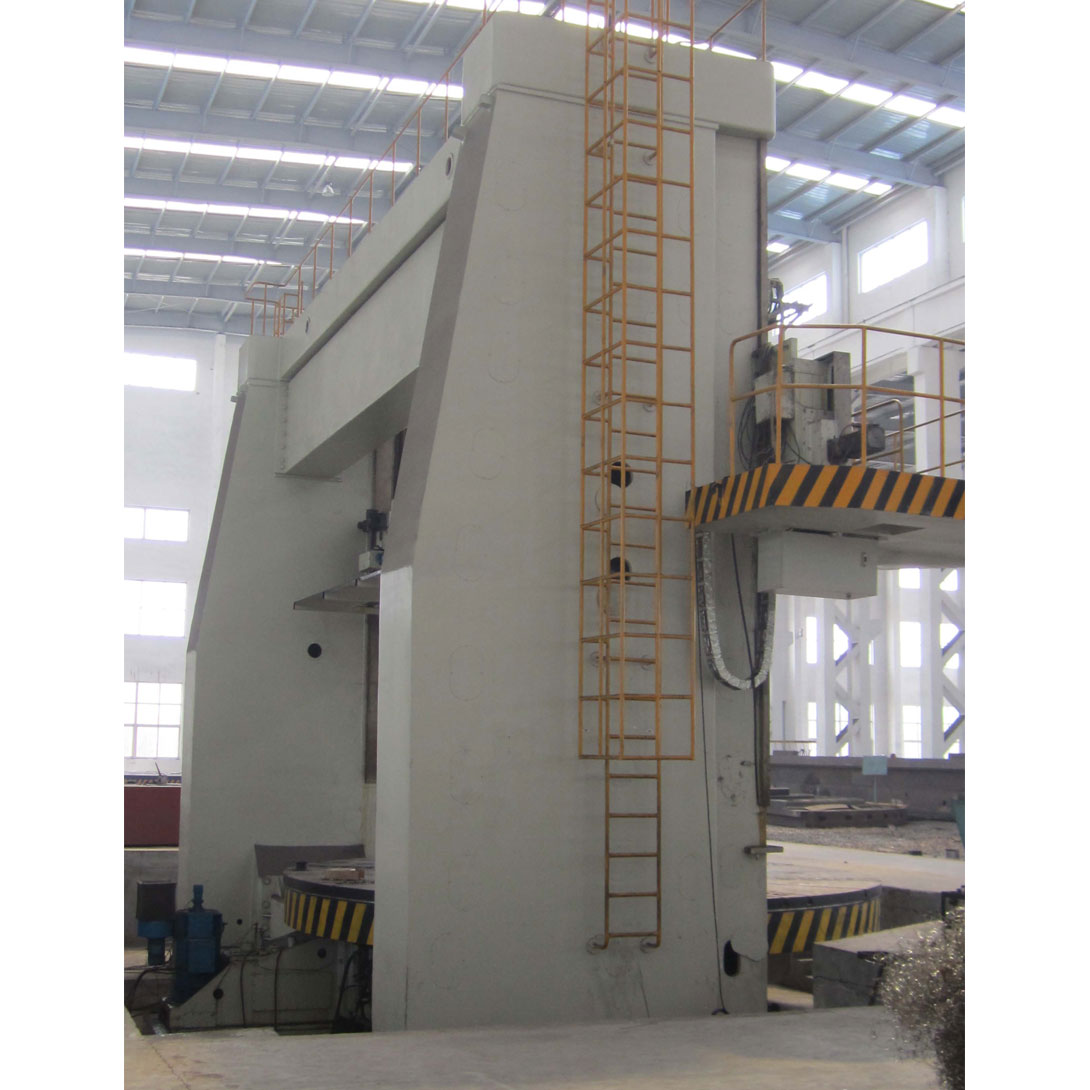

Machine structure

★ Thermo-symmetrical gantry frame structure
The machine adopts a stable thermo-symmetrical gantry frame structure and consists mainly of base,
table, R.H. and L.H. columns, cross rail, top beam, tool heads, hydraulic system and electric system.

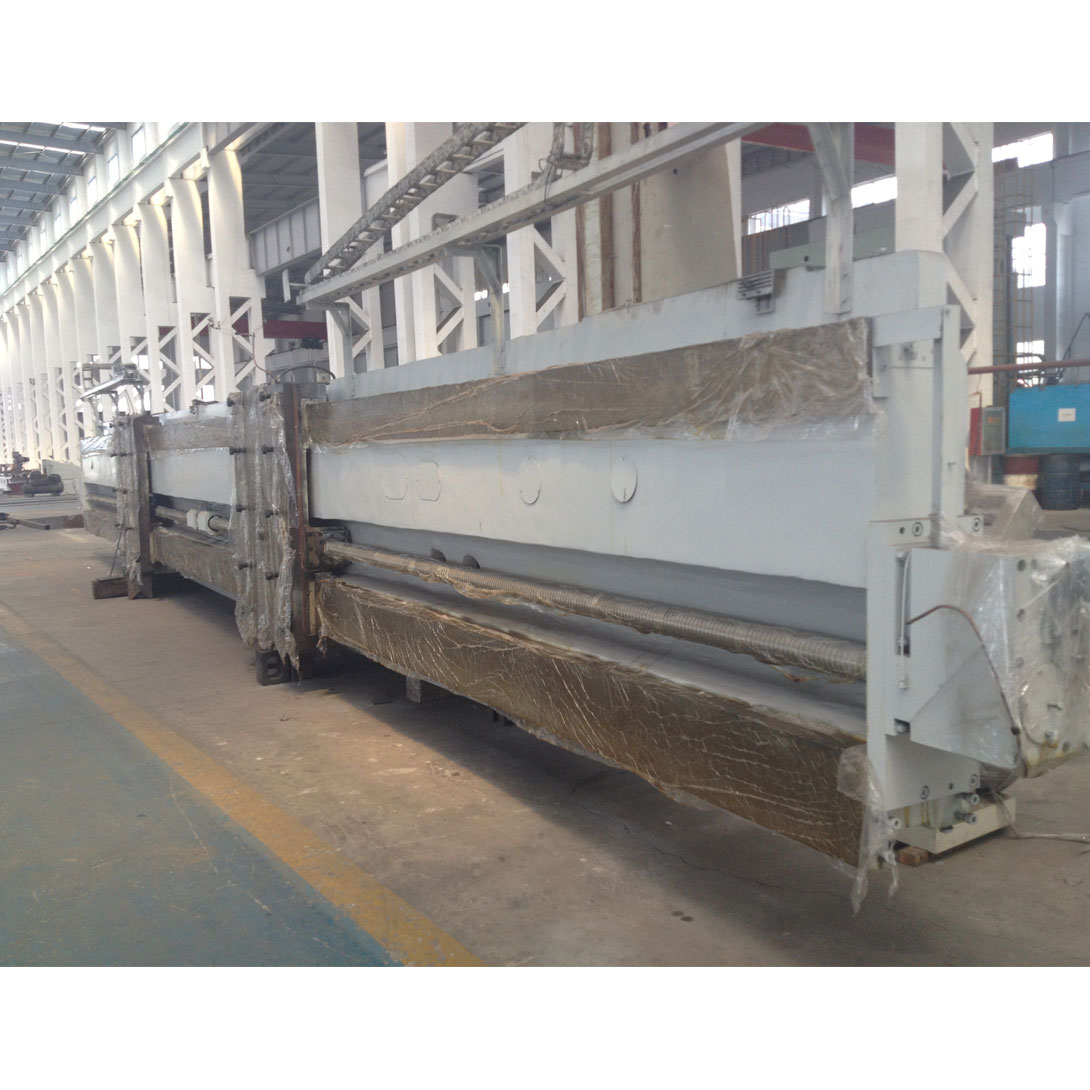

Columns and cross rail are of box-shaped castings with numerous reinforced ribs. Two columns are
connected through the top beam on the top and bolted to the base at the bottom so to form a superb
rigid and stable structure that is qualified for stable and heavy cutting even at severe cutting conditions.

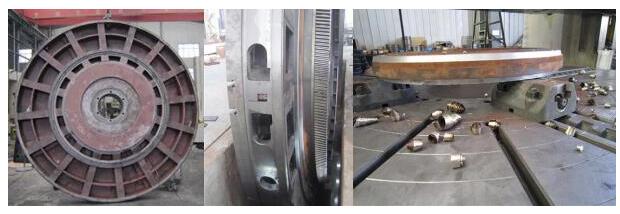

Base with spindle and bearing

The base is made of heavily reinforced ribbed grey cast iron and stress-relieved after rough machining.
Heavy load short-shaft type spindle is placed in the center. High precision (P5 class) preloaded double row
cylindrical roller thrust bearing is equipped to support the spindle radically. Inner conic ring of the
bearings can eliminate the radial clearance effectively for high precision positioning of spindle and
stable rotating at high speed. Big size hydrostatic bearings are adopted axially on the base for improved
loading capacity. Hydrostatic guideways are Zinc-Aluminum alloy lined and matched. Constant flow
hydraulic oil flows in through regulating distribution mechanism.

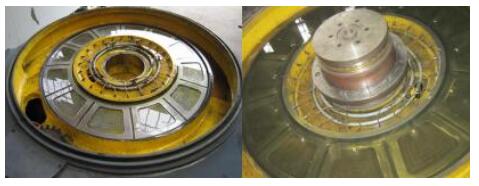

Hydrostatic bearing features:

a). low friction for smooth rotation and long life of table,
b). heavy load capacity on table,
c). oil film between machine base and table absorbs cutting vibration & loads,
d). safety system regulating the hydrostatic pressure for optimum safety.\

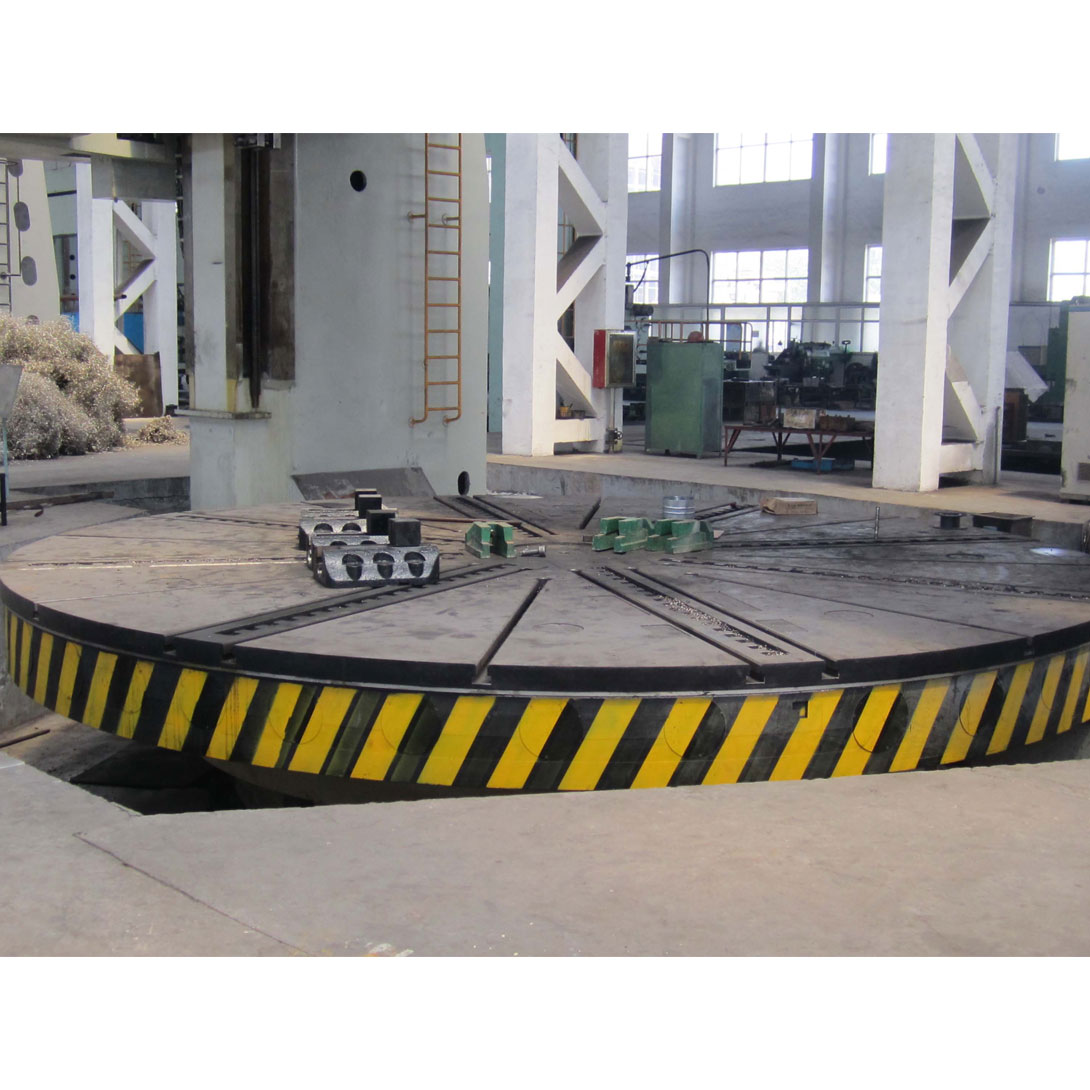

WorkTable：

The table is made of high grade cast iron with numerous reinforced ribs for superb rigidity. Four heavy duty
jaws are fitted on the table. A ring gear is fitted under the table. Surfaces under the table are engraved with
wear-resistant Zinc-Aluminum alloy lining.

Manufacturing standards

Accuracy: as per China standards JB4116-85 (basically equivalent to ISO 3655-1986)

Working conditions
1. Power supply: 3800V±10%, 50Hz±1Hz, 3Ph
2. Ambient temperature: 5℃ – 45℃
3. Relative humidity: ≤85% (at 20℃)
4. Machine noise: ≤85dB @ idle running
5. Altitude: ≤1500mm
6. Environment: clear from harmful gas, liquids, dusts and vibration, magnetic and radiation sources, etc
