TK6513-2 boring mills

Description

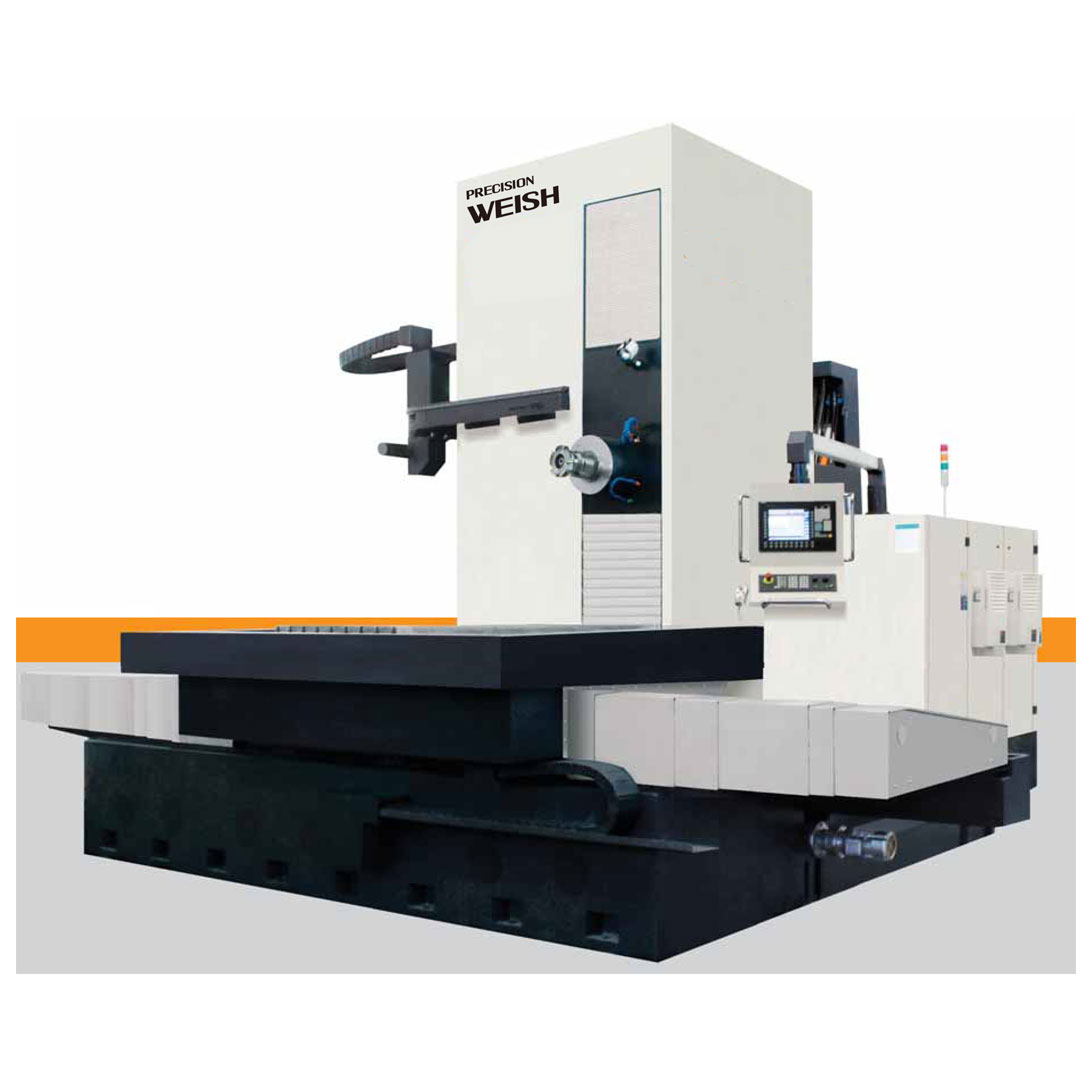

TK6511/6513/6516 series CNC planer boring and milling machine is a CNC machine tool, mainly used for processing large metal workpieces, such as parts for the shipbuilding, automobile, railway, aviation and other industries. Its structural characteristics are that the bed is cast in cast iron and has a wide work surface that can carry workpieces weighing more than several tons. At the same time, the planer boring and milling machine is also equipped with a boring and milling head and a rotor, which can realize multi-angle and multi-directional processing of workpieces. This machine tool is a high-cost CNC heavy-duty machine tool developed with advanced mechanical, electrical and hydraulic integrated new technologies. It has a wide processing range, complete CNC functions, high precision and production efficiency. The machine tool is equipped with a FANUC CNC system and an AC digital servo drive system. The system has a powerful data package and a low failure rate, and its performance is very stable. It can realize multi-axis linkage, function compensation, data communication and exchange, analog display, a variety of fixed processing cycles, tool management, etc. Select tool libraries of different capacities to realize one-time clamping of multi-task sequence compound automatic processing; the dead loop feedback system of the coordinate axis can also process higher precision process content.

No	Item	Unit	TK6513
			CNC boring mills
1	Spindle dia	Mm	φ130
2	Max spindle thrust	N	20000N
3	Spindle taper		ISO 50( JT50 7:24 )
4	Pull stud		D50  DIN69872
5	Main motor power	kW	20/30
6	Spindle rotation	r/min	1-2000r/min
7	Boring spindle max torque	Nm	2500
8	Max axial force of spindle	N	20000
9	Worktable size	Mm	1600*1400
10	Max loading	Kg	18000
11	X axis-worktable	Mm	2000 to 4000mm
12	Y axis-headstock	Mm	1500 to 4000mm
13	Z axis- Column longitudinal	Mm	1000 to 2500mm
14	W axis- Boring axis axial	Mm	800
15	Table rotation B axis	°	360
16	T-slot width	Mm	28
17	Mini distance from spindle end face to worktable center	Mm	100（spindle extend）
18	Distance from spindle center to worktable	Mm	100-2100
Max feeding speed of worktable
18	X	mm/min	stepless，1-6000mm/min
19	Y	mm/min	stepless，1-6000mm/min
20	Z	mm/min	stepless，1-6000mm/min
21	W	mm/min	stepless，1-3000mm/min
22	B	r/min	0~1
Max rapid speed of each axis
23	X、Y、Z	mm/min	6000
24	W	mm/min	3000
25	B	r/min	1



Control axis

Basic configuration of 5 feed axes and 1 spindle; the coordinate axes are defined as follows:

X axis: lateral travel of the worktable

Y axis: spindle box moves up and down along the column;

V axis: longitudinal travel of the worktable;

W axis: ram travel

Z axis: front and rear travel of the boring axis;

B axis: NC rotary table rotation indexing

U axis (optional): end feed

Machine operating conditions

Power supply: 3AC 440V/380V±10% 50HZ±1HZ 3PH

Altitude: ≤1500m

Temperature: 5～45°

Relative humidity: ≤85%

Usage environment: The machine tool should be away from vibration sources, heat sources and direct sunlight.

Milling head for optional:
